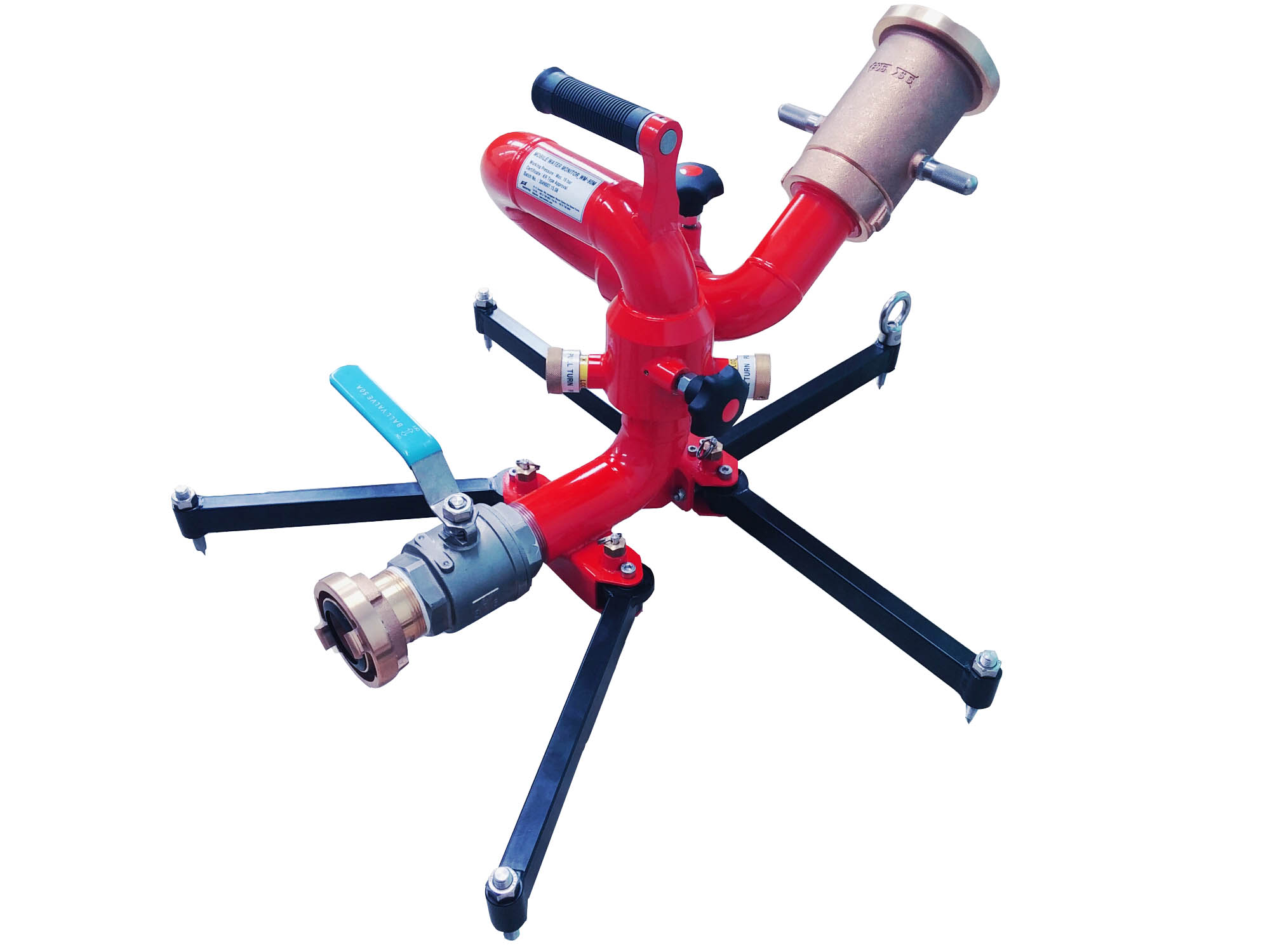

Mobile Water monitor MW-80M is water discharge device of portable type consisting of inlet fitting, monitor water way, swivel fitting, discharge nozzle and a shut-off device.
It complies fully with the rule regulation as IMO MSC.1/Circ.1472 and SOLAS II-2/10.7.3
Specification
|
Portable Water Monitor |
WM-80M |
|
Material |
Body - Stainless Steel 316 |
|
Nozzle : Bronze |
|
|
Available for other material |
|
|
Operating |
Manual |
|
Shut Off Device |
Lever Operated Ball Valve |
|
Operating Dimension |
L755 x W690 x H410 mm |
|
Flow Rate |
Over 1000 L/Min @ 4 bar |
|
Discharge Length |
Over 40m @ 4 bar |
|
Working Pressure |
Max. 16 bar |
|
Inlet Connection |
2" PT Female thread |
|
Weight |
Approx 22 kg |
|
(w/o Hydrant Coupling) |
|
|
Certificate |
KR Type Approval |
|
Note |
Hydrant Coupling for Option |
